This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises to do powder, military, aerospace, electronics, metallurgy, medicine, pottery theft, glass, machinery, new material development, special materials, refractory materials, building materials, chemical industry, metal sintering and metal heat treatment and other experimental and production ideal equipment<br /> <br /> Chamber sizeand temperature according to customer need;<br /> Control System:Computer control touch screen control micro-computer control<br />
Efficient & Eco-FriendlyThis equipment introduces foreign advanced technology,independent research and development production of efficient, energy-saving, environmental protection, new electric furnace, with advanced and reasonable structure, beautiful appearance, shell using high-quality cold rolled steel plate, advanced CNC machine tool processing, luxury, beautiful two-color imported epoxy powder electrostatic spraying process, processing, high temperature resistance, corrosion resistance, long-term not fade;
Efficient & Eco-FriendlyUsing high quality heating elements, the furnace has the advantages of balanced temperature field, low surface temperature of furnace body, adjustable rate of rise, protection and cooling, energy saving, etc.
High levelThe furnace is made of ceramic fiber pile material by numerical control technology, strong thermal shock resistance, strong cold and heat resistance, good corrosion resistance, no collapse, no crystallization, no slag, no pollution, long service life;
High levelThe control system adopts computer artificial intelligence regulation technology, with PID regulation, automatic control, self-tuning function, multi-segment program programming, and can prepare a variety of temperature, heat preservation,cooling procedures, high temperature control accuracy;
High levelIntegrated module thyristor control, phase-shift trigger; Protection system: Independent over-temperature protection,over-pressure, over-current, leakage, short circuit and other protection, high degree of automation, the indicators have reached the advanced level
Easy to operateCan be vacuumed and through a variety of gases, valve control is equipped with air intake valve, exhaust valve, vacuum valve; It can pass a variety of gases: argon, nitrogen, oxygen. When the vacuum system adopts multistage O-type density, the heat-resistant rubber pad ensures reliable sealing, small vacuum leakage, the pressure in the furnace is displayed by the instrument, and the vacuum interface conditions are convenient to operate
In addition, through the control software independently developed by our company,the electric furnace and the computer can be connected to achieve a single or multiple electric furnaces remote control, start the electric furnace, stop the electric furnace, set temperature control program, temperature control program storage, view the history curve, print the history curve, etc.;
Mass flowmeter can accurately display gas flow, and programmable automatic control gas flow;

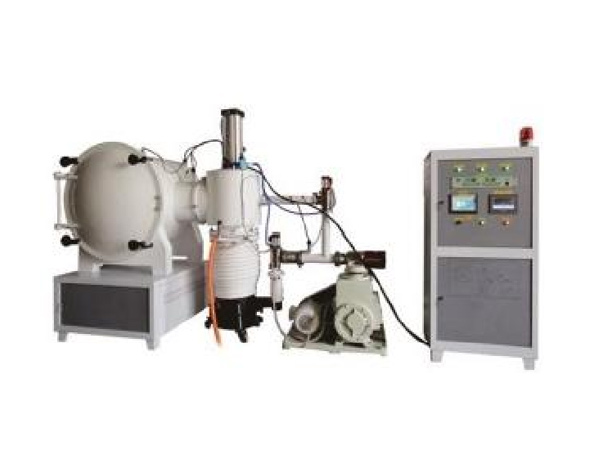

Molecular pump, diffusion pump, Roots pump, mechanical original can meet a variety of vacuum requirements.
Digital display vacuum gauge can display vacuum degree with high precision
Door opening Optional electric/manual opening and closing of the door.
| Chamber size | Voltage | Power | Temp controlaccuracy |
| 200×150×150 | 220 | 4 | ±1℃ |
| 300×200×120 | 220 | 6 | ±1℃ |
| 300×200×200 | 380 | 10 | ±1℃ |
| 400×250×160 | 380 | 12 | ±1℃ |
| 400×300×300 | 380 | 14 | ±1℃ |
| 500×300×200 | 380 | 15 | ±1℃ |
| 500×300×300 | 380 | 18 | ±1℃ |
| 500×400×400 | 380 | 20 | ±1℃ |
| 500×500×500 | 380 | 25 | ±1℃ |
| 800×500×500 | 380 | 40 | ±1℃ |
| 1200×800×800 | 380 | 95 | ±1℃ |
| 2000×800×800 | 380 | 150 | ±1℃ |
| Temperature:800℃.1000℃,1200℃,1400℃,1600℃,1700℃、1800℃、2200℃ | |||
1Consultation Share your specs: temperature range, throughput, automation needs.
2 Design and Development Interactive CAD models delivered.
3 Prototype Testing On-site trials with your actual materials at our facility.
4 Mass Production Full documentation package with certifications.
5DeliveryTransportation and after-sales service
GUANDN will design equipment based on your production volume, temperature needs (30–2200°C), automation requirements, footprint needs, and more.
From the initial design concept, production, to after - sales service, Our team of experienced engineers, with over 15 years of design experience on average, will work closely with you to provide CAD design, 3D layout, and max temp thermal simulation.
Share your specs—we’ll design, optimize, and deliver.
