This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises to do powder, military, aerospace, electronics, metallurgy, medicine, pottery theft, glass, machinery, new material development, special materials, refractory materials, building materials, chemical industry, metal sintering and metal heat treatment and other experimental and production ideal equipment<br /> <br /> Chamber sizeand temperature according to customer need;<br /> Control System:Computer control touch screen control micro-computer control
Adjustable RatesThe furnace has the advantages of balanced temperature field, double-layer heat resistant furnace body surface temperature close to room temperature, rising, protection, cooling rate can be adjusted, etc. The furnace is made of imported ultra-high temperature composite fiber material by numerical control technology, strong thermal shock resistance, strong heat resistance, good corrosion resistance, no collapse, no crystallization, no falling, no pollution, long service life;
High PrecisionThe control system adopts microcomputer intelligent regulation technology, with PID regulation, automatic control, self-tuning function, 50 segments of program programming, and can prepare a variety of temperature, heat preservation, cooling procedures, high precision temperature control, high energy saving, high stability;
Advanced TechIntegrated module thyristor control, phase-shift trigger, protection system: independent over temperature protection, over temperature, over pressure, over current, break, power off, leakage, short circuit and other protection. The degree of automation is high, and the indicators have reached the advanced level
In addition, through the control software independently developed by our company, the electric furnace and the computer can be connected to achieve a single or multiple electric furnaces remote control, start the electric furnace, stop the electric furnace, set temperature control program, temperature control program storage, view the history curve, print the history curve, etc.;
Mass flowmeter can accurately display gas flow, and programmable automatic control gas flow;
Molecular pump, diffusion pump, Roots pump, mechanical original can meet a variety of vacuum requirements.
Digital display vacuum gauge can display vacuum degree with high precision

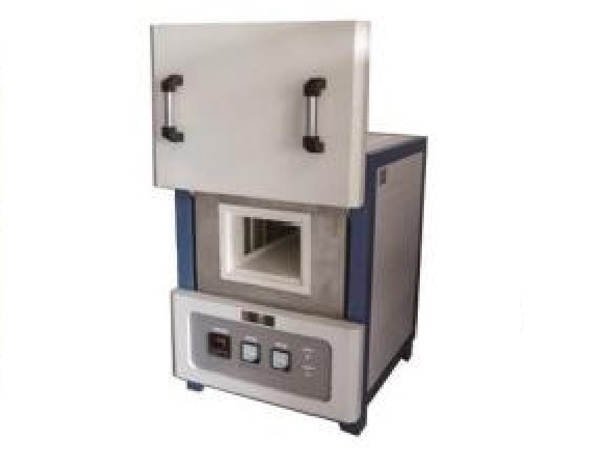

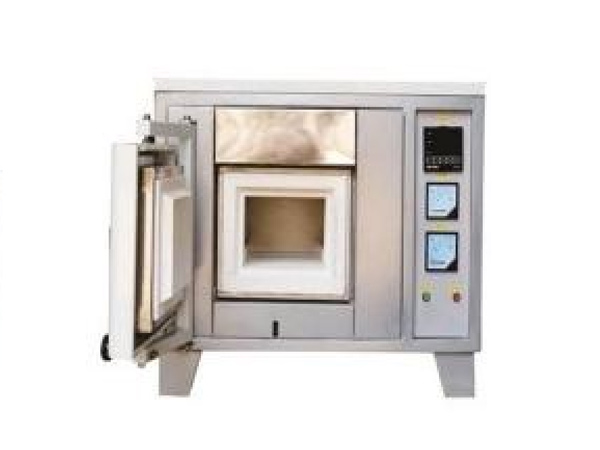

Door opening Optional electric/manual opening and closing of the door.
| Chamber size | Voltage | Power | Temp controlaccuracy |
| 200×150×150 | 220 | 4 | ±1℃ |
| 300×200×120 | 220 | 6 | ±1℃ |
| 300×200×200 | 380 | 10 | ±1℃ |
| 400×250×160 | 380 | 12 | ±1℃ |
| 400×300×300 | 380 | 14 | ±1℃ |
| 500*300*200 | 380 | 15 | ±1℃ |
| 500×300×300 | 380 | 18 | ±1℃ |
| 500×400×400 | 380 | 20 | ±1℃ |
| 500×500×500 | 380 | 25 | ±1℃ |
| 800×500×500 | 380 | 40 | ±1℃ |
| 1200×800×800 | 380 | 95 | ±1℃ |
| 2000×1000×1000 | 380 | 150 | ±1℃ |
| Temperature:800℃.1000℃,1200℃、1400℃,1600℃,1700℃、1800℃、2200C | |||
1Consultation Share your specs: temperature range, throughput, automation needs.
2 Design and Development Interactive CAD models delivered.
3 Prototype Testing On-site trials with your actual materials at our facility.
4 Mass Production Full documentation package with certifications.
5DeliveryTransportation and after-sales service
GUANDN will design equipment based on your production volume, temperature needs (30–2200°C), automation requirements, footprint needs, and more.
From the initial design concept, production, to after - sales service, Our team of experienced engineers, with over 15 years of design experience on average, will work closely with you to provide CAD design, 3D layout, and max temp thermal simulation.
Share your specs—we’ll design, optimize, and deliver.
